find the ❌ element, say this button.

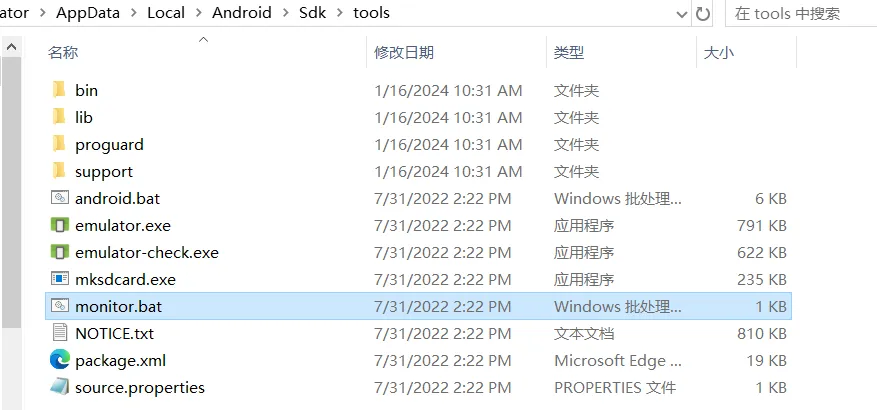

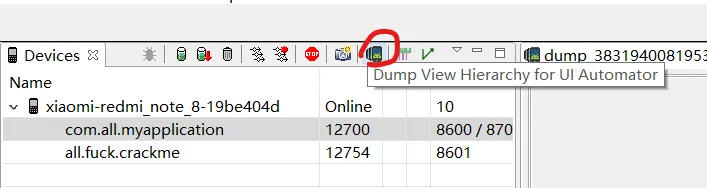

use Android Device Monitor in Android studio. Click this one

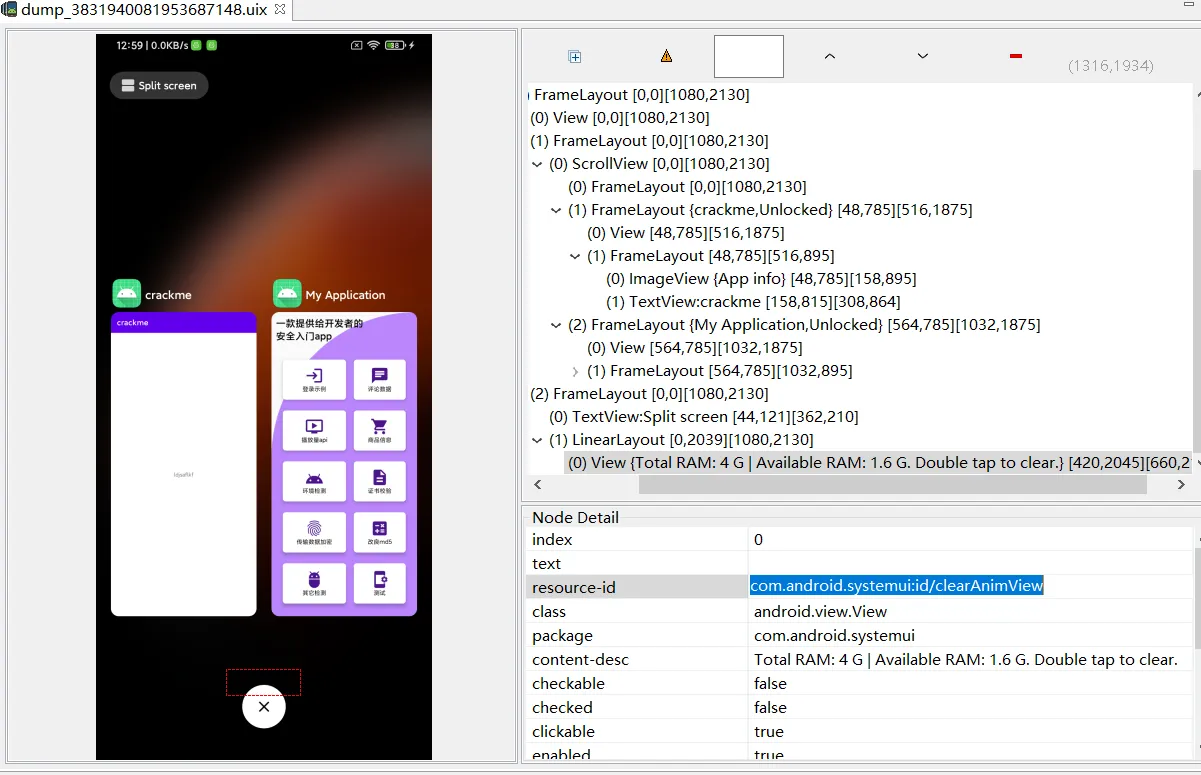

move your mouse and click on the button you want to know its resource-id, then you can find this element via its id

this tool is from AS, some high versions don’t have this tool

recommend as version:

https://developer.android.google.cn/studio/archive

Android Studio Arctic Fox | 2020.3.1 Patch 2 September 1, 2021
   Windows (64-bit): android-studio-2020.3.1.24-windows.exe (957.2 MB)
        Mac (Intel): android-studio-2020.3.1.24-mac.zip (997.2 MB)
Mac (Apple silicon): android-studio-2020.3.1.24-mac_arm.dmg (993.3 MB)

其他airtest
	https://airtest-new.nie.netease.com/update/airtestide

start to code#

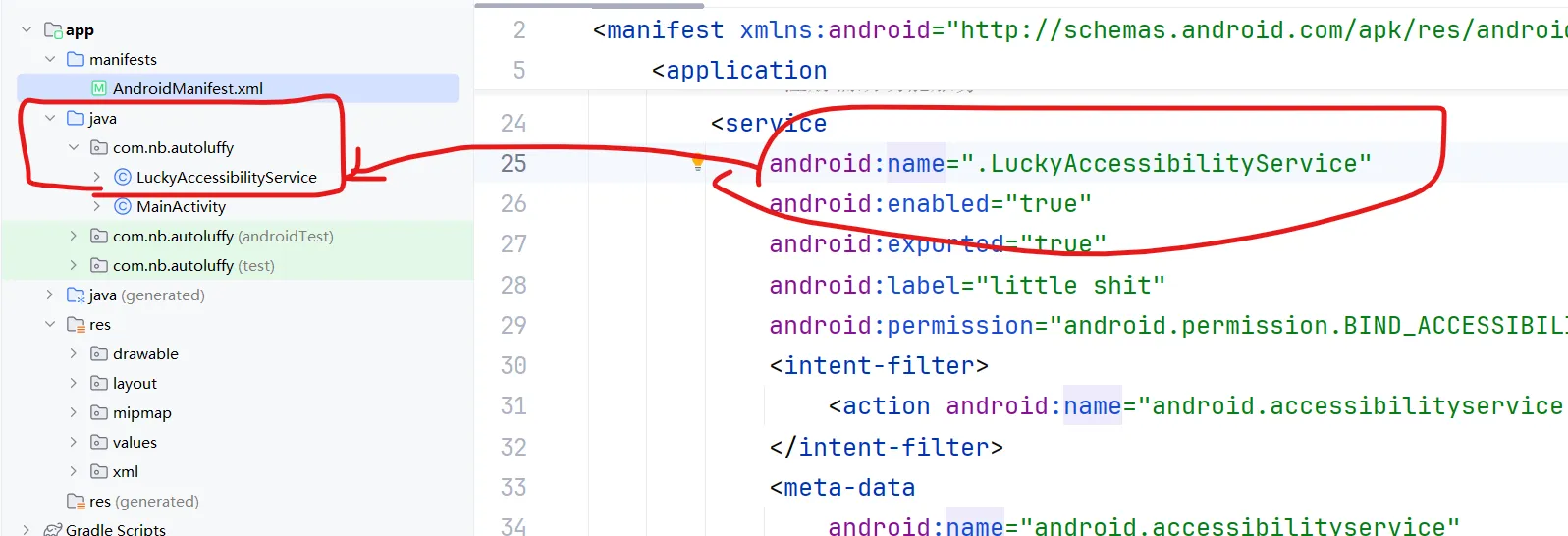

AndroidManifest.xml name should be the same with java file name

<!-- register accessibility service -->
        <service
            android:name=".LuckyAccessibilityService"
            android:enabled="true"
            android:exported="true"
            android:label="little shit"
            android:permission="android.permission.BIND_ACCESSIBILITY_SERVICE">
            <intent-filter>
                <action android:name="android.accessibilityservice.AccessibilityService" />
            </intent-filter>
            <meta-data
                android:name="android.accessibilityservice"
                android:resource="@xml/accessibility_config" />
        </service>
<!-- register accessibility service -->

xml/accessibility_config

<?xml version="1.0" encoding="utf-8"?>
<accessibility-service xmlns:android="http://schemas.android.com/apk/res/android"
    android:accessibilityEventTypes="typeAllMask"
    android:accessibilityFeedbackType="feedbackSpoken"
    android:accessibilityFlags="flagIncludeNotImportantViews|flagReportViewIds"
    android:canPerformGestures="true"
    android:canRetrieveWindowContent="true"
    android:description="@string/accessibility_desc"  // heres the strings
    android:notificationTimeout="100" />

values/strings.xml: show the name on Accessibility - Downloaded services

<resources>
    <string name="app_name">AutoDemo</string>
    <string name="accessibility_desc"> fuck fuck fuck 开麦打游戏的人拉屎没纸</string>
</resources>

懒得记了，后续请看

tips#

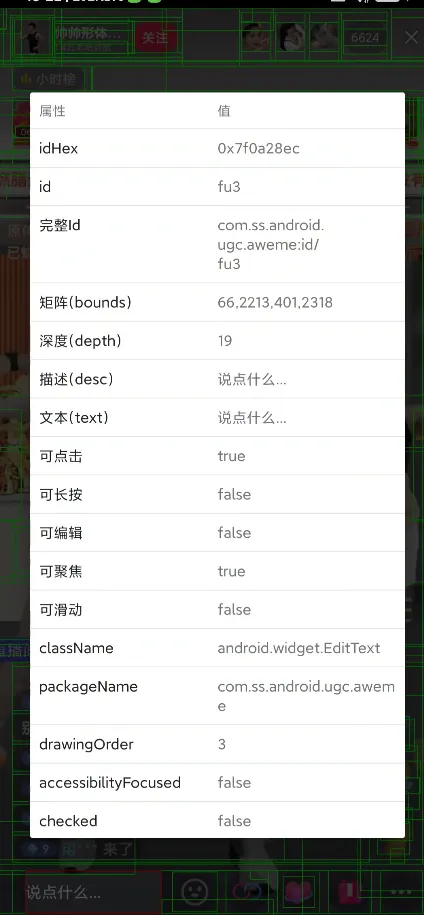

monitor无法解析正在播放视频的画面，可使用手机“界面分析”app或电脑平替

点第二个解析页面
