ida使用
修改汇编指令
- 把鼠标定位到要修改的指令(函数图上的就行)
- 调出16进制的窗口
View
->Open subviews
->Hex dump
(这步可以不做) - 修改
Edit
->Patch program
->Change byte...
- 改完后,记得保存
Edit
->Patch program
->Apply patches to input file
快捷键
Shift + F12
调出字符串窗口
Alt + T
搜索字符串
静态分析
在伪代码窗口,鼠标定位到想看的那行,再点Tab,就能定位到它相应的汇编代码

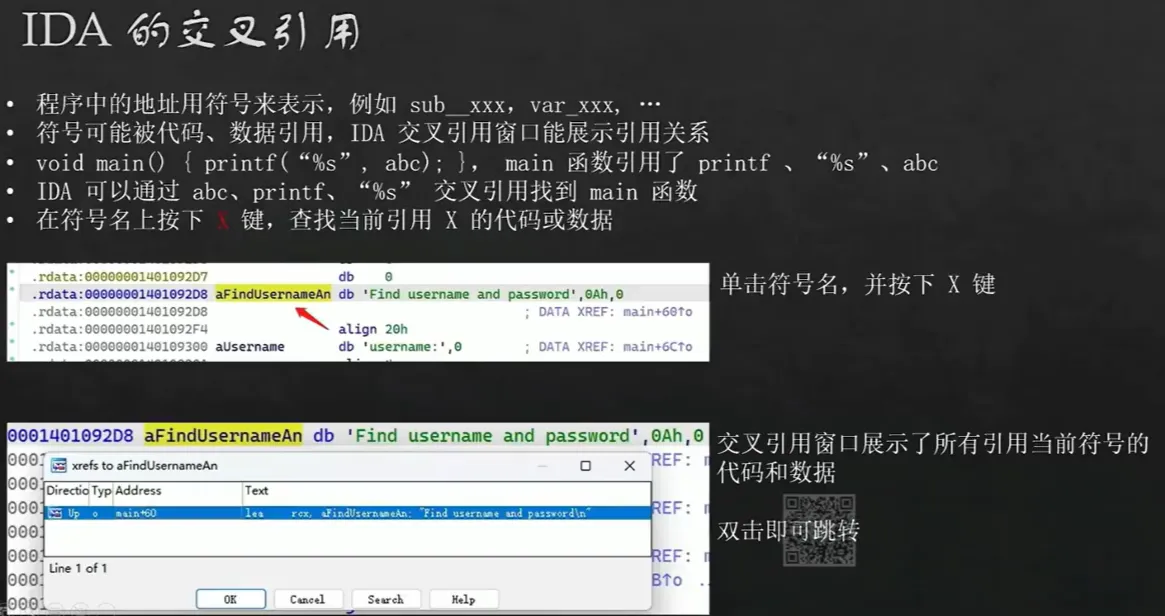

字符串表 shift + F12
双击某字符串,进入定义的位置
字符串不一定全
- 右键
Edit
进入编辑模式。 - 右键
apply changes
退出编辑模式。 - Edit->Patch program -> Apply patches to input file… 保存
ctrl+v撤销上一次操作
如果跳转了其它窗口,是因为跟点前的窗口有关。需要再点一下你像切换过去的窗口,然后在跳转,就可以跳转到同款窗口了
这个可以锁定高亮,让某个单词一直亮着
关键:0x3F
猜测是base64
base64编码过程,有‘=‘是编码,解码没有=
在伪代码窗口,光标定位在十六进制,按下h
可以转成十进制;按r
切换成对应的ascii编码字符
在 db上按下d
建,会把db变成dw,再按下变成dd,然后dq
按u
把字符转成数字

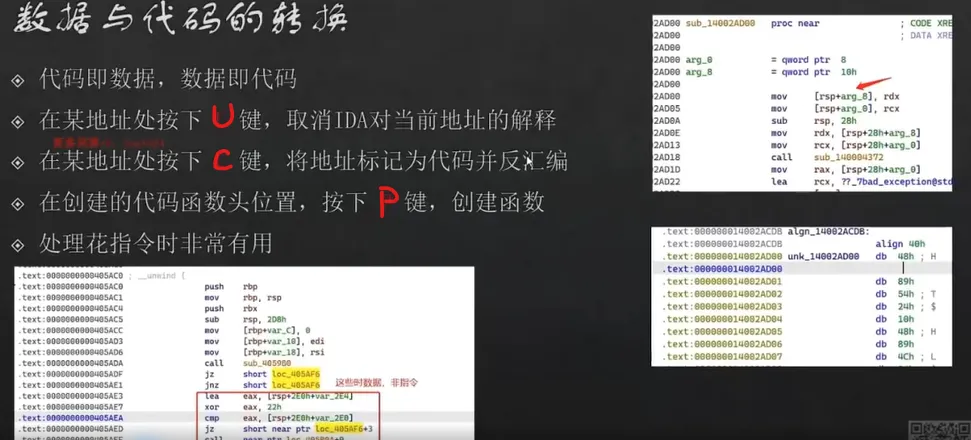

数据和代码是可以相互转换的;把jz,jnz连起来的代码下方转成数据,然后选中(记得多选一行)转成nop
全部处理完后,让ida重新分析函数
IDA内置函数、类型定义在头文件defs.h

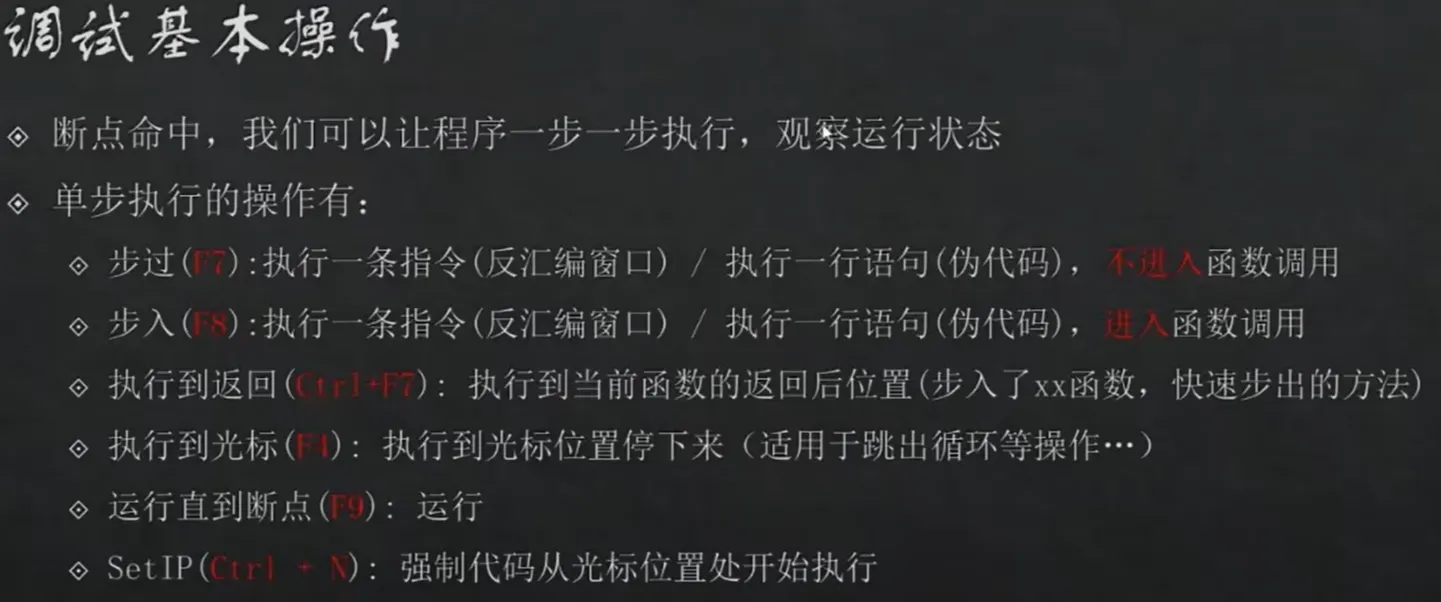

动态调试
如果不小心关掉了什么窗口,去debugger->debugger windows找
ctrl+P跳转ip强制让程序执行到某个地方,不根据判断结果
F2设置断点

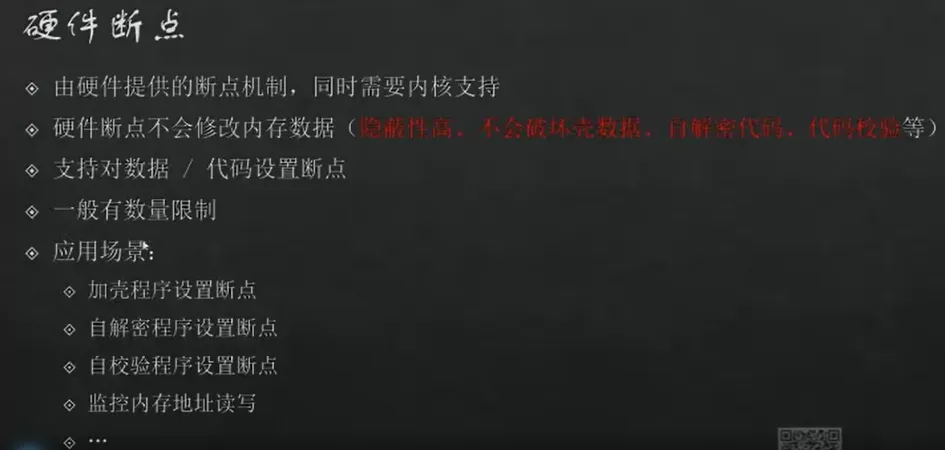

断点
调试权限
Android系统默认不允许应用被随意调试,如果想要调试,需要满足二者之一的条件。
安卓系统中
ro.debuggable=1 (默认是0)
【推荐】- 方案一:基于magisk面具的
MagiskHidePropsConf
模块,改写ro.debuggable
的值为1 - 方案二:定制AOSP时,将
ro.debuggable
的值设置为 1【用userdebug版本编译】
- 方案一:基于magisk面具的
应用
AndroidManifest.xml
中Application
标签包含属性android:debuggable="true"
可以使用mt管理,修改,重新签名。
面具模块
刷模块
在magisk面具中输入MagiskHidePropsConf模块。【MagiskHidePropsConf-v6.1.2.zip】
步骤:
将
MagiskHidePropsConf-v6.1.2.zip
上传至手机目录打开magisk面具,刷入模块
重启手机
设置
在设置之前,可以先读取手机的ro.debuggable
属性值。
>>>adb shell getprop ro.debuggable
>>>0
修改设置步骤:
第1步:adb shell
第2步:props
===================================== Select an option below. ===================================== 1 - Edit device fingerprint 2 - Force BASIC key attestation 3 - Device simulation (disabled) 4 - Edit MagiskHide props (active) 5 - Add/edit custom props (active) 【选择】 6 - Delete prop values 7 - Script settings 8 - Collect logs u - Perform module update check r - Reset all options/settings b - Reboot device e - Exit
第3步:输入5,回车继续
n - New custom prop 【选择】 b - Go back to main menu e - Exit
第4步:输入n,回车继续
Enter the prop to set. Example: ro.sf.lcd_density b - Go back e - Exit Enter your desired option: 【输入 ro.debuggable】
ro.debuggable is one of the sensitive props that can be set by the MagiskHide props option. Are you sure you want to proceed? y - Yes n - No e - Exit Enter your desired option: 【输入y】
Enter the value you want to set ro.debuggable to, or select from the options below. The currently set value is: 0 Please enter the new value. b - Go back e - Exit Enter your desired option: 【输入1】
===================================== ro.debuggable ===================================== This will set ro.debuggable to: 1 Pick an option below to change what boot stage the prop will be set in, or set/reset a delay: 1 - Default (current) 2 - post-fs-data 3 - late_start service 4 - Both boot stages d - Delay Do you want to continue? Enter y(es), n(o), e(xit) or an option from above: 【输入y】
===================================== Reboot - ro.debuggable ===================================== Reboot for changes to take effect. Do you want to reboot now (y/n)? Enter y(es), n(o) or e(xit): 【输入y】
根据上述执行操作完毕后,再次查看手机的ro.debuggable
属性值就变成1。
>>>adb shell getprop ro.debuggable
>>>1
如果后续不想要重置,按照上述指引将自定义创建的属性删除即可。
debug so file
android:extractNativeLibs="true"
android:debuggable="true"
adb push android_server64 /data/local/tmp/as75-64
change its name intoas75-64
chmod 755 as75-64
./as75-64
-p
to bypass anti debugadb forward tcp:23946 tcp:23946
attach(IDA 7.5)
PAY ATTENTION : make sure you have clicked your apps functional place to load the target so file . don’t open any so file
ctrl F
to search your process name, like com.xx.xx
. if you dont see it, ctrl U
to refresh it. or right click, refresh.
go to Modules
, right click quick search
search your package’s name
double click your target

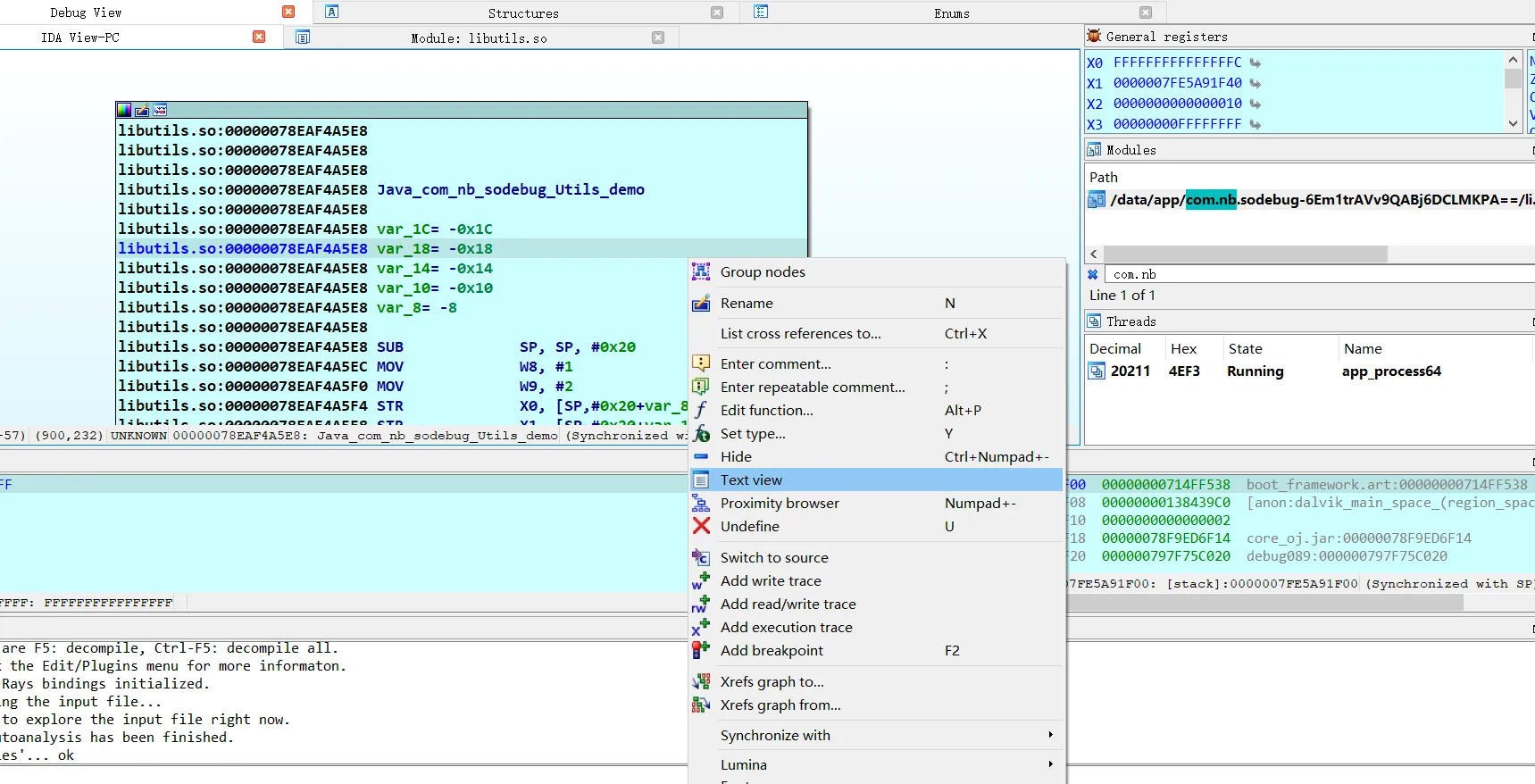

choose Text view
, F2
to set a breakpoint. F8
to next step
launch(IDA 8.3)
C:\Users\Administrator\AppData\Local\Android\Sdk\tools
monitor.bat
error
check your java version
java -version
C:\Users\Administrator>java -version
java version "21.0.5" 2024-10-15 LTS
Java(TM) SE Runtime Environment (build 21.0.5+9-LTS-239)
Java HotSpot(TM) 64-Bit Server VM (build 21.0.5+9-LTS-239, mixed mode, sharing)

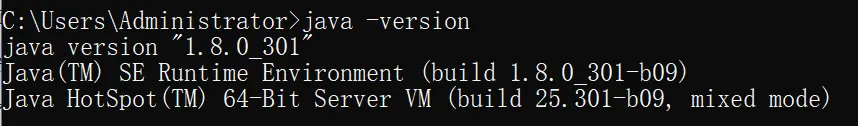

mine was 21, that’s not propriate, switch it to 1.8 will be fine :)

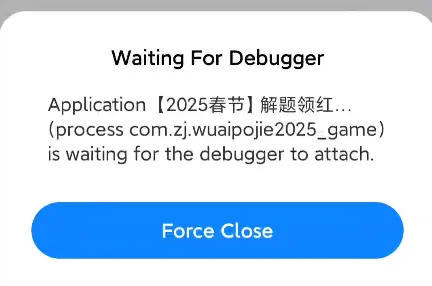

1. start an app
eg. adb shell am start -D -n com.zj.wuaipojie2025_game/com.zj.wuaipojie2025_game.MainActivity
adb shell am start -D -n 包/Activity名称
dumpsys activity activities | grep -i run # if you dont know which activity to start
2. open ida
find the target function, right click choose text view
.
F2
to set a breakpoint.
Debugger
-Remote ARM Linux/Android debugger
Debugger
-Process Options
Debugger
-Attach process
resume
jdb -connect com.sun.jdi.SocketAttach:hostname=127.0.0.1,port=8700
ro.debugable
Android system does not allow applications to be arbitrarily debugged by default. To enable debugging, one of the following conditions must be met:
In Android system,
ro.debuggable=1
(default is 0) [Recommended]- Option 1: Use the
MagiskHidePropsConf
module based on Magisk to change the value ofro.debuggable
to 1. - Option 2: When customizing AOSP, set the value of
ro.debuggable
to 1 (compile with the userdebug version).
- Option 1: Use the
The
Application
tag in the application’sAndroidManifest.xml
contains the attributeandroid:debuggable="true"
.- You can use MT Manager to modify and re-sign the application.
if it shows ?
, reboot adb, no need to close monitor
